Thursday, July 11, 2024

Modular Bridgehouse: Documentation


For the month of July, I will be using this image as my reference, borrowed from Sihun Park. Since I have only three weeks to work on this portfolio piece, I will only be focusing on making that tiny guardhouse to the side of the bridge. It will serve as a sort of prototype/proof of concept for the whole environment, which I will be working on throughout the month of August, and maybe even September.

____________________________________________________________________________________

ASSET BREAKDOWN


_____________________________________________________________________________

Modular Bridgehouse:

  1. Bridge
    1. Wooden Supports (From which 1.10 wires are hanging)
    2. Flags
    3. Wooden Gateway
    4. Wooden Slats (3?)
    5. Chains
    6. Chain Supports (Those squarish things on the side of the bridge which holds up the chains)
    7. Wooden Ramparts
    8. Bridge Base
    9. Boat
    10. Wires (Hanging from 1.1 Wooden Supports)
  2. Guardhouse
    1. Blue Roof, Inner Roof and Gable
    2. Wooden Platform (On which the Guardhouse sits)
    3. Wooden Beam Supports (From which 2.8 Wires are hanging)
    4. Banner
    5. Guardhouse Base
    6. Wooden Ridge Beam (On top of 2.1 Blue Roof)
    7. Wires (Hanging from 2.3 Wooden Supports)
  3. Gatehouse
    1. Main Building Roof, Inner Roof and Gable
    2. Wall Dormer (above Arch Frame, aka Roof Extrusion) Roof, Inner Roof and Gable
    3. Hip Roof Dormer (Small Roof Extrusions)
    4. Wall Dormer (above Arch Frame, aka Roof Extrusion) Balcony
    5. Stone Arch Frame with Wooden Support
    6. Main Building Base
    7. Side Window with Sill
    8. Front Window with Sill
    9. Side Building Roof, Inner Roof and Gable
    10. Side Building Base (Only Top Floor)
    11. Side Building Base (Middle Floor)
    12. Side Building Base (Ground Floor)
    13. Crates
    14. Barrels
    15. Docks
    16. Banner
    17. Lanterns
  4. Landscape
    1. Stacked Rocks (3)
    2. Wooden Fence
    3. Job Board
    4. Rock sitting on Grass
    5. Grass
    6. Trees (2)
    7. Individual Rock on Ground Floor (Near the water)
    8. Flowers/Weeds
    9. Pebbles/Small Rocks
    10. Water
    11. Landscape
    12. Back Trees (2)
    13. Arch over Estuary
    14. Distant Island
    15. Clouds
_____________________________________________________________________________

Trim Sheets/Tiling Textures:

  1. Bridge
    1. Bridge Stone
    2. Bridge Top
  2. Guardhouse
    1. Blue Roof
    2. Wooden Planks [8 beams with 4/6 corners]
    3. Alternating Wooden Slats
    4. Banner Texture
    5. Individual Stone
    6. Window
    7. Leaks
    8. Plaster Wall
  3. Gatehouse
    1. Brick Wall
    2. Alternating Wooden Slats with Cross Beams With Arched Window
    3. Alternating Wooden Slats with Cross Beams With Leaks
    4. Alternating Wooden Slats with Cross Beams With Exposed Bits
    5. Wall Dormer Cross-Timbered with Exposed Brick
    6. Wall Dormer Half-Arch Timbered
  4. Landscape
    1. Moss (RVT)
_____________________________________________________________________________

Schedule:


  1. Week 01

    1. Complete Proxy Blockout and Modular Assembly

    2. First Lighting Pass in Unreal

    3. Trim Sheet Proxy and Start Sculpting

    4. Collection for Documentation

  2. Week 02

    1. Trim Sheet Sculpting Finished

    2. Second Lighting Pass

    3. Start Texturing

    4. Collection for Documentation

  3. Week 03
    1. Texturing Finished
    2. Vertex Painting
    3. Lighting Pass
    4. Collection for Documentation
    5. Turntable Video

    Monday, July 8, 2024

    Research: Substance Designer for Dummies! (Example: Sci-Fi UI Elements)

    INTRODUCTION


    For the 8-week research project, I worked on learning Substance Designer to create sci-fi HUD elements for two of my portfolio pieces, the ‘Master Control Chamber’ and ‘The Airlock’, both of which have several monitor like devices with screens displaying a lot of UI elements.

    The reason I chose this project was because I’ve been looking forward to learning Substance Designer for a while now. I think this is a good starting point, since UI more often than not involves manipulating very simple shapes to create complex and beautiful results.

    FINAL RENDER - UI SCREEN

    As you can see above, the IRay render from Substance Designer displays a simple, somewhat-retro style (like you'd see in the Fallout games, for example) screen of a fictional world map, overlaid with a square grid. There is no texture or material for the screen itself, just a black background with a blur, which makes the UI pop.

    Below you'll find more of these screens, whose individual UI elements I didn't entirely generate in Substance Designer. Instead, I used Adobe Stock images, cropped interesting elements from various image sources and basically 'kit-bashed' it together.

    FINAL RENDERS IN SUBSTANCE DESIGNER





    REFERENCES


    REFERENCE BOARD

    These were my references. My primary reference were, of course, my portfolio pieces, as shown below. As you can see, the screens in both the images seem very different, but in fact, involve the same process of creation.

    Master Control Chamber

    The Airlock

    The Airlock

    DIFFERENCE


    DESIGNER VS PAINTER

    As most of us are familiar with Substance Painter, I thought I'd give a quick introduction into Designer from that perspective. Designer is what you'd call a 'material authoring' software, that is, it allows you to procedurally generate your own materials and textures. It is node-based, allowing you to connect various nodes together to generate various shapes and textures. The materials that result are particularly useful when they're tileable, which can be used to apply on various meshes.

    I once heard someone describing the difference between Painter and Designer with a very simple metaphor. Designer is where you create the paint needed to paint, say, a wall, and Painter is where you apply that paint to specific areas of the wall.

    NODES


    Nodes are the building blocks of any material you make in SD. They are basically operators that transform any input in a very specific way. Like in the below example, where a bitmap (explained in greater detail below, but for now just consider it as an imported image) is being transformed in 2 dimensions (X and Y) but in a very specific way (it's being turned upside down).

    NODES

    START WITH HEIGHT!

    When working on creating any material, almost always start with Height, because it will flow into every other aspect of material, and once you're done with height, about 80 percent of the work is pretty much done. Also, always start with the macrostructure, then go into details, which is true for any texturing software.

    LINKS


    There can be one of two types of links found in every node. Yellow links and grey links.

    YELLOW LINKS

    Yellow links are for color nodes, like the base color texture. It doesn't always work out like that, but that's a good way to explain it simply.

    GREY LINKS

    Grey links are for - you guessed it! - greyscale connections like the height textures.

    RED LINK!

    You can't join a yellow output to a grey input, because it will create an error and refuse to show an output. Errors are easily observable with the presence of a red line and a big gaping black hole in the output node. I will show you later how to convert color to greyscale. The inverse is also possible.

    A useful shortcut to remember is that double clicking any node will display it in Output - 2D View. This is demonstrated below, as I've double clicked the Edge Detect Node (see the white outline highlighting the selection?) and it displays immediately in the adjacent 2D View.

    DOUBLE-CLICK FOR 2D OUTPUT

    FINAL RENDER - UI SCREEN

    PROCESS


    Now, I'll show you how I made the below HUD as a sample. It's part of a tutorial by 3dEx, aYoutube channel that showcases some amazing textures and materials created in SD.  I followed the tutorial in order to learn SD in such a way that was immediately applicable to what I was doing with this research project.

    In order to demonstrate what I have learned, I will share my workflow. I will focus a lot on individual nodes (after all, this is a tutorial for dummies!), but occasionally show how I pulled off something a little more complex.



    SHAPE NODE

    You start off, of course, with a shape node. As the name suggests, it can generate any of the basic shapes like squares, circles and a few other complex ones. These have parameters with which you can scale it in any direction. Here, I started with a square which I then scaled into a rectangle. This will form the basics of my screen.



    EDGE DETECT

    Edge Detect Node, as can be inferred, isolates the edge of a shape or any input.

    Edge Detect Node is a favorite of mine, because it works both in creating masks, as well as in the later stages of material creation, where you have to create effects such as edge wear for metals, for example. For the latter this node will help isolate the borders of a shape, which can then be blended with various grunge options present by default in SD.

    BLEND

    In the above screenshot, you can see the node 'Blend' in action. It acts quite like the blending modes in Substance Painter and Photoshop. Here, it's multiplying a simple Shape node displaying a rectangle, with an Edge Detect Node to create a much more rounded rectangle, which is not a shape you can get by default.


    The Transformation 2D is a pretty self-explanatory node. It allows you to translate, rotate and scale inputs in any way or form. Very valuable for this sort of project.

    Bitmaps are nodes that are dependent on external resources that are not found by default in SD. For example, in this particular case, I have imported a sci fi panel outline of sorts to use within my screens. Images can be either imported or linked, the latter being particularly useful when you plan on updating the image later and just need a 'proxy' of sorts within the graph for visualization purposes.

    Bitmaps are a bit annoying sometimes because they will always recognize any image as being a color bitmap, even if the image itself is only a greyscale. This will cause problems as demonstrated below, when I tried to plugin the bitmap into a gradient map, which should provide me with colors, but instead gives only a red connecting line, indicating an error.


    There is a specific node, Greyscale Conversion, that converts color to greyscale, which I had to use quite a lot for this project.


    Gradient Map, as the name suggests, isn't just for providing one color, but actually allows you to mess around with an entire gradient. In my scenario, I just needed the one color, so I stuck with it.


    The Blend Node in action again. Here it's demonstrating the immensely useful function of 'Add'.

    INVERT GREYSCALE

    Invert Greyscale and Levels are self-explanatory, as they're available in other software such as Photoshop and Substance Painter.

    LEVELS Part 01

    LEVELS Part 02

    SCREEN


    This is the process I used to make the 'screen' part of my material. Just a simple Shape Node blended with Edge Detect, along with a bunch of other nodes I've already mentioned above.

    TILE SAMPLER IN ACTION! (also, ANTIALIASING)

    Tile Sampler is a pretty useful node, even though I used it only a couple of times. It's a generator, as in it can generate basic shapes like a Shape Node, but alternatively, it also takes inputs. It's primary function is to 'tile', as in lay out a particular shape or input in neat little rows and columns. I believe it can also randomize the tiles if provided with more than one input.

    I will also explain just what is going on in the above graph. Edge Detect doesn't always give great results when the input is more complex than a square. So this chain of nodes (Input > Edge Detect > Bevel > Auto Levels) kinda helps in antialiasing those pesky edges, giving a more smooth output).

    WORLD MAP


    FINAL RENDER - UI SCREEN

    Now I will show you exactly how I created the world map and accompanying grid as shown in the render above.

    GRID


    I started with a tile sampler, and quickly created two types of grid, one thicker, with longer spaces between lines and the other thinner, with half the space between the lines. These two grids will snugly blend together (not shown) to create one complex grid. There, that's the grid done.

    FACETED SHAPES


    Here, I've used the tile sampler to initially generate some simple circles in a 4X4 grid, then used another tile sampler that generated a simple noise mask, blended them together to create these faceted shapes that I then isolated using four different Transformation 2D nodes.

    LANDMASS GENERATOR


    This particular 'landmass' generator is just a blending of various noise masks such as gaussian, fractal sum etc. This combination was then treated with a directional warp, which allowed me to create those swirly bits that vaguely look like a soup of fictional continents. Then, finally, a histogram scan node is linked.

    HISTOGRAM SCAN

    A Histogram Scan is pretty useful when you want to dynamically increase or decrease contrast of any input images. In this particular case, I just ramped the values way high so I could get those blobs as my landmass. It can also grow or shrink masks, as demonstrated below.


    COASTLINE

    Remember those fractal circles? I combined them with the landmass mask from above and use a tile sampler to basically distribute the fractal circles onto the landmass. Another histogram scan later, you gte landmass with an uneven, jagged coastline, with bays and inlets and all sorts of stuff to give it a bit of realism.

    COLOR


    Finally, the color for my landmass-grid mask. I pushed this blend into a gradient map, that's basically it.

    RADAR - CARTESIAN TO POLAR GRAYSCALE


    I also made this little radar icon that I haven't used in my final render, but I thought was fun because I discovered this node called Cartesian to Polar Grayscale, which, well, you can see what it does.

    RADAR - COLOR


    FINAL RENDER - UI SCREEN


    EXPORTS


    OUTPUTS

    The outputs for Substance Designer can be exported separately as bit maps directly from the graph, or can be packed into a file format called Substance Archive (.sbsar).


    BASE MATERIAL

    Base Material is a 'add first, used last' node. It always sits at the extreme right of your node arrangement. It's a material node, so no need for individual outputs for channels, everything is already packed. You can use this to get a quick 3D preview by just dragging and dropping it onto the 3D cube in the 3D viewport.

    You can also export individual output maps if need be, as I did, because while I created the screens for this particular project, I only exported the individual greyscale masks into Substance Painter for my portfolio pieces.


    OUTPUT MAPS

    OTHER HUD MASKS


    Now, I will be honest, while I producedurally created the above landmass-grid material, I didn't put in the effort for the rest of my HUDs. Instead, I just went into Adobe Stock, downloaded a bunch of different HUDs, cropped them into individual elements which I imported into SD and then assembled using a lot of the nodes I have showed you.

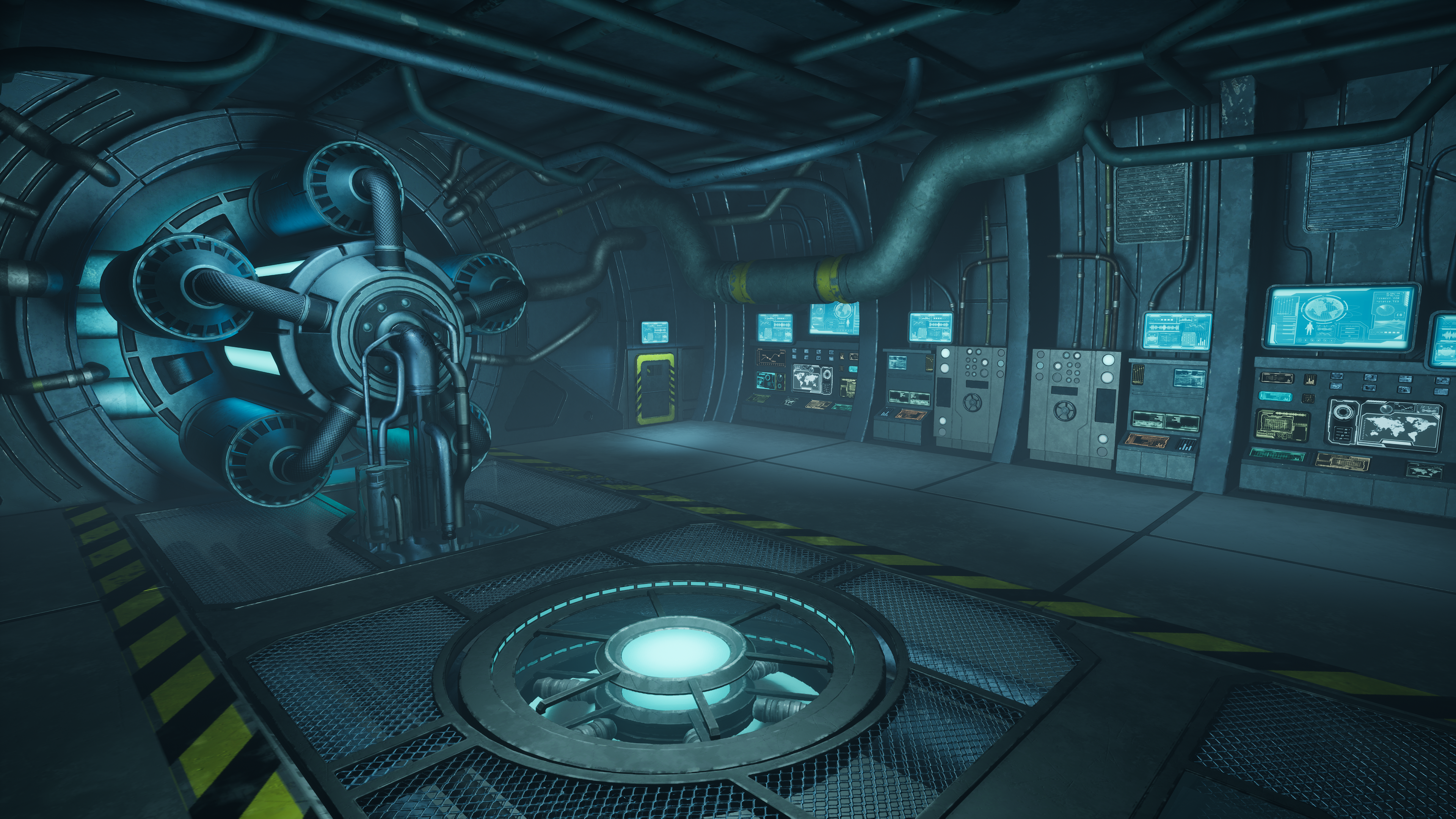

    This is from the 'Master Control Chamber' portfolio. As you can see, I've added the HUD elements on the various screens, and messed around with the colors to generate a wide variety of effects. I've also added a render of the environment below (WIP).

    FINAL RENDER

    CONCLUSION AND ACKNOWLEDGEMENTS


    I'm quite proud of how this entire research project has come out. It was simple, yet complex, exactly like the HUD elements themselves!

    I couldn't have done it without a team around me, though. My professor, Nick Zuccarello, helped me quite a bit in picking a specific direction for what could've been a ginormous endeavor. And my brother continuously poked holes in my process, and helped me polish it up into something that's coherent at the very least. And finally, my parents, whom, despite not understanding a word I was blabbing about, provided valuable support when I was stressing out during numerous occasions.

    Thank you all so much for your help and this valuable opportunity.
